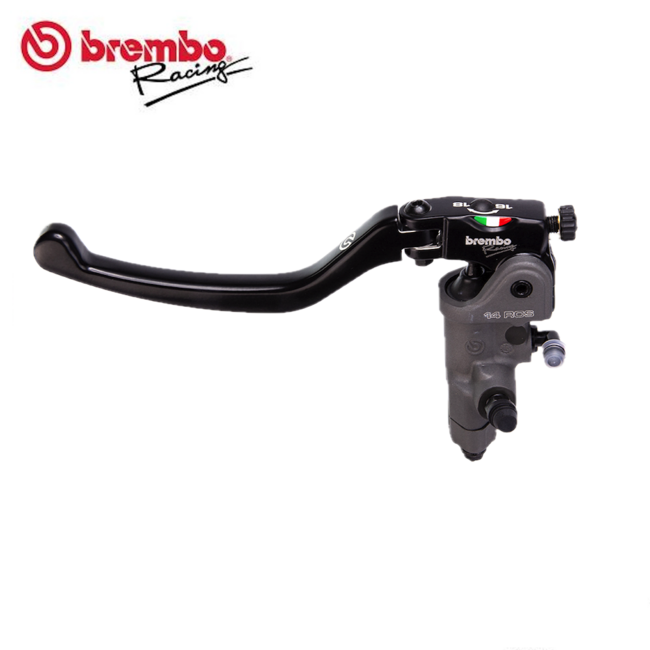

Brembo 14 RCS Brembo Clutch Pump / Left Brake Pump

Order no.: 110A26365

The radial brake master cylinder from Brembo is the product that has revolutionized the world of braking systems over the past decade.
The term radial refers to the specific configuration in which both the force applied by the rider’s fingers on the brake lever and the force exerted by the lever on the piston act in the same direction, radially with respect to the mounting point of the master cylinder, the handlebar.
This means that all the force applied to the lever is converted into braking power, resulting in powerful, consistent, and extremely precise braking performance.

The Brembo-patented RCS system adjusts the lever center distance by rotating an eccentric mechanism.
Switching between the different settings is extremely simple and allows the lever feel to be softer or firmer, depending on personal preference.
The operating force and braking performance always remain the same, while the lever feel is perfectly optimized.

Technical specifications

• Piston diameter: 14 mm
• Lever ratio (center distance): 16 / 18 mm
• Material: Forged aluminum
• Finish: Hard anodizing
• Weight: 350 g
• Brake fluid: DOT 4
