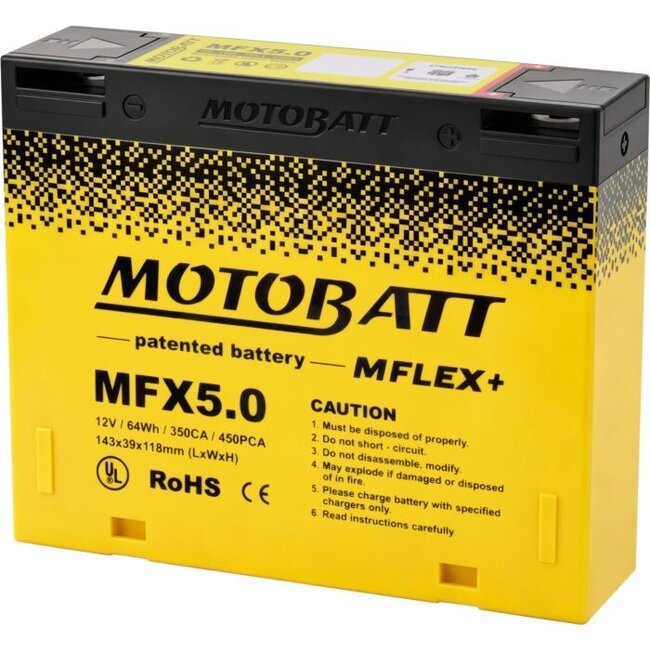

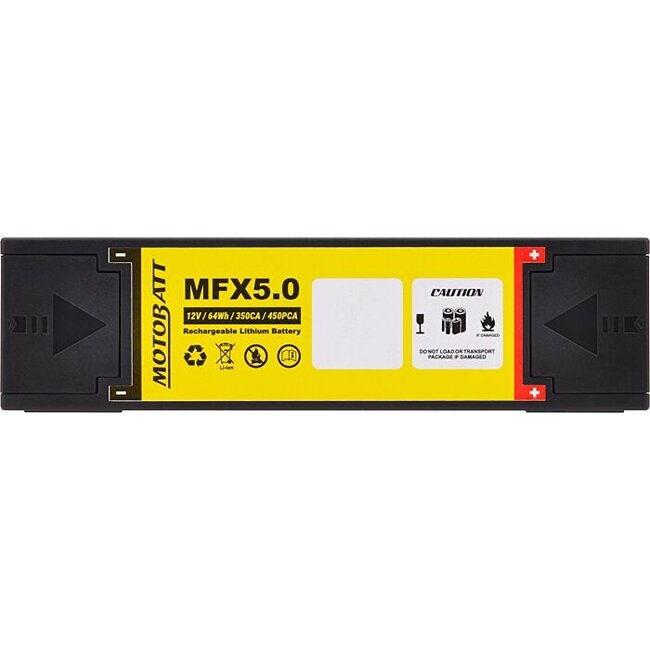

Motobatt MFX5.0 MFLEX+ 5Ah Lithium Motorcycle Battery

Motobatt MFX5.0 MFLEX+ Lithium Battery

The Motobatt MFX5.0 is a compact LiFePO₄ lithium battery from Motobatt's modular MFLEX+ range. Its combination of low weight, compact dimensions and high cranking performance makes it particularly suitable for motorcycles and powersports applications where space and weight are important.

The MFX5.0 features an integrated Battery Management System (BMS), providing protection against conditions such as overcharging, over-discharge, overcurrent, short circuits and extreme temperatures.

The MFX5.0 is also the direct replacement for the well-known Ultrabatt 300CCA. For customers currently using an Ultrabatt 300CCA and looking for its current successor, the Motobatt MFX5.0 is the corresponding replacement.

A key feature of the MFLEX+ system is its modular design. Multiple compatible MFLEX+ battery modules can be connected when additional capacity or cranking performance is required.

Specifications

• Battery technology: LiFePO₄ lithium
• Voltage: 12 V
• Capacity: 5.0 Ah / 64 Wh
• Cranking performance: approx. 350 CA
• Pulse Cranking Amps: approx. 450 PCA
• Dimensions: 143 × 39 × 118 mm
• Weight: approx. 0.72 kg
• Integrated Battery Management System (BMS)
• Low self-discharge
• Maintenance-free
• Modular MFLEX+ system
• Direct replacement for the Ultrabatt 300CCA

Modular MFLEX+ system

The MFX5.0 can be used as a standalone battery or combined with compatible MFLEX+ modules. This allows battery capacity and available cranking performance to be adapted to the application without switching to a completely different battery platform.
