PZRacing GearTronic ZERO Yamaha gear indicator GT3100-Y

GearTronic ZERO Yamaha gear indicator GT3100-Y

The PZRacing GearTronic ZERO GT3100-Y is a compact gear indicator for the Yamaha motorcycles listed below. Its model-specific wiring connects to the motorcycle’s original connectors, adding a clear indication of the selected gear to the cockpit.

The LCD provides a wide viewing angle. An integrated touchscreen handles setup and lets you choose between red, green, orange, violet, light blue and blue backlighting. You can therefore match the display to your preference and the surrounding instruments.

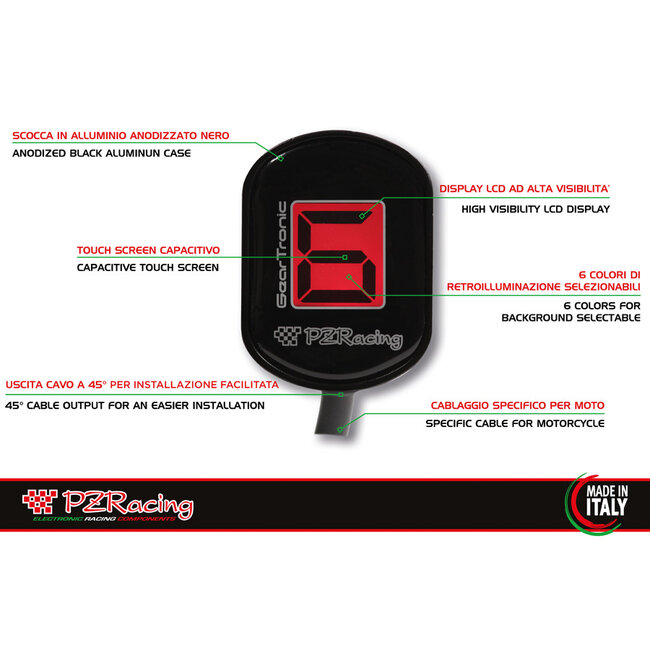

Features

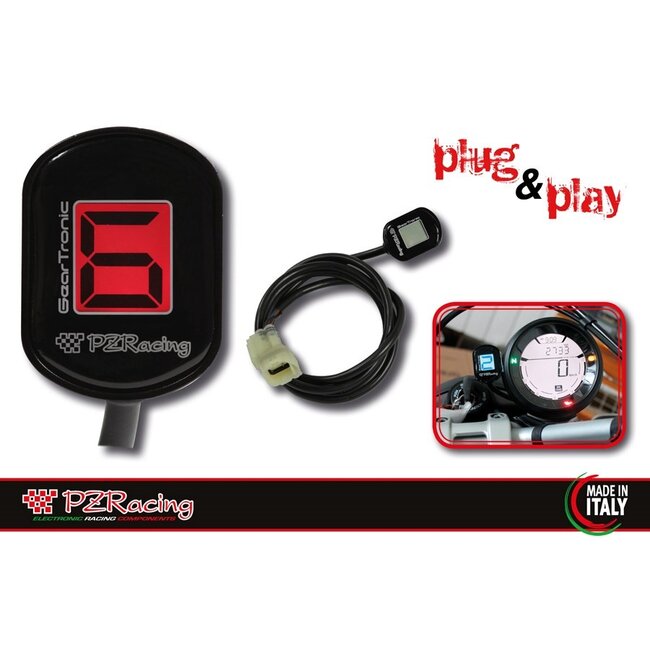

• Plug-and-play connection with model-specific wiring
• LCD with integrated touchscreen

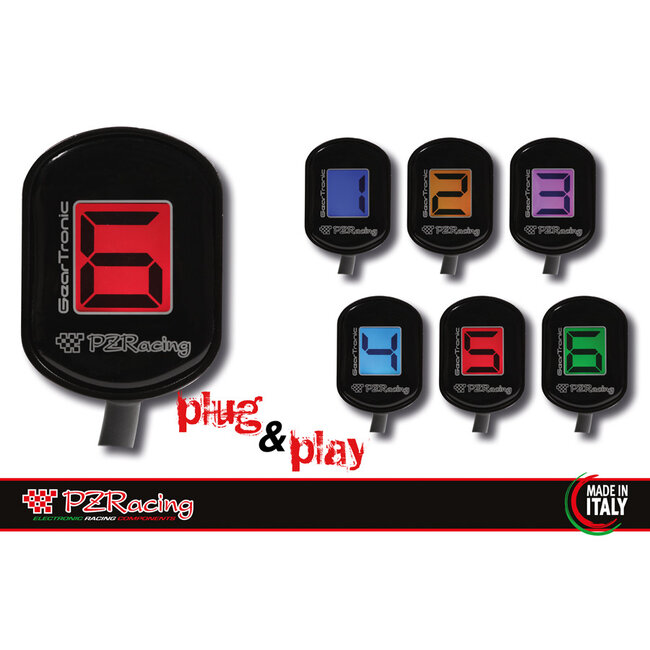

• Six selectable backlight colours
• Black anodised aluminium housing
• Rear threaded mounting holes
• Water-resistant construction
• Dimensions: 36 × 27 × 15 mm

Use and installation

The aluminium housing protects the electronics while keeping the unit compact. Check the model and year against the application list before installation. Yamaha identifies this particular connection version; other GearTronic ZERO versions may use different wiring.

Compatible models

• YAMAHA FZS FAZER 600 2002–2004
• YAMAHA FZ1 FAZER 1000 2006–2016
• YAMAHA FZ1 2006-2016
• YAMAHA R6 2006-2016
• YAMAHA R1 2007-2008
• YAMAHA R6 2003-2005
• YAMAHA R46 2005
• YAMAHA R1 2002-2006
• YAMAHA FZS FAZER 600 1998-2001
• YAMAHA FZS FAZER 1000 2000-2005
• YAMAHA R1 1998-2001
• YAMAHA FJR1300 2000-2005
• YAMAHA FJR1300 ABS 2002-2005
• YAMAHA R6 1999-2002
• YAMAHA FZ6 (without ABS) 2004-2007
• YAMAHA FZ6 S2 (without ABS) 2007–2011
• YAMAHA FZ6 FAZER (without ABS) 2004-2007
• YAMAHA FZ6 FAZER S2 (without ABS) 2007-2011
• YAMAHA FZ8 (without ABS) 2010-2016
• YAMAHA XJ6 (without ABS) 2008-2015
• YAMAHA MT-03 2006-2010
• YAMAHA XT660 2004-2010
• YAMAHA WR250R/X 2008-2015

Manual PZRacing (GT3100-Y)
