PZRacing OBD2 signal interface for cars OBD100

OBD2 signal interface for cars OBD100

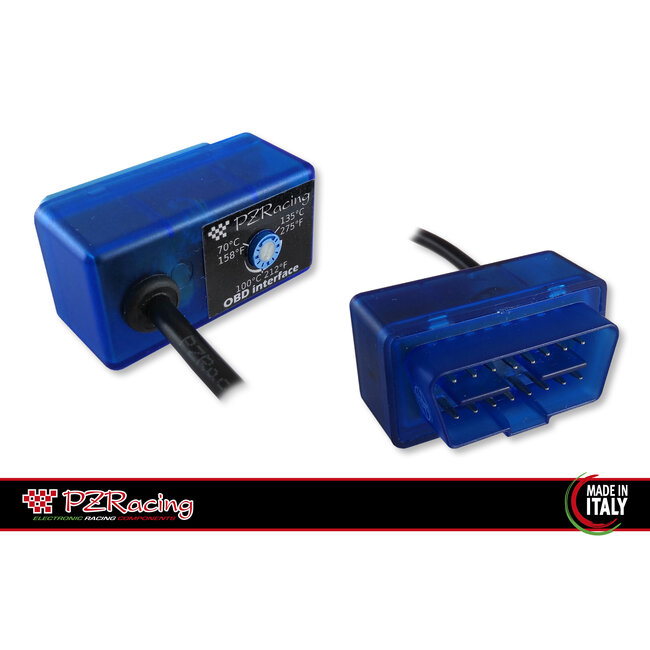

The PZRacing OBD100 extracts signals from a suitable car’s diagnostic connector for accessories including GearTronic GT3000, GT400 and LighTronic LT2000. It provides power, ground, rpm, speed and an adjustable temperature-alarm output.

The interface switches on connected equipment when an rpm signal is received, making use of the permanently available OBD power supply. OBD100 is a signal interface rather than a diagnostic fault-code display.

Features

• OBD2 connection for suitable cars
• Outputs: +12 V, GND, RPM and SPEED
• Active-low temperature alarm
• Alarm adjustment by trimmer

Use and installation

Available channels depend on the connected instrument, vehicle signals and any required sensors. Check the wiring diagram before installation. This module expands a suitable PZRacing installation and is not a standalone display.

Manual PZRacing (OBD100)
