PZRacing SSWT200 M10x1 temperature sensor
PZRacing SSWT200 NTC temperature sensor with M10x1 thread, a 75 cm cable and four-pin M8 connector. Measures from -50 to +110 °C when connected to a suitable PZRacing data logger. Read more..
High customer reviews
9,5+Competitively priced
Lowe pricesWide range of products
From A to ZWe ship Worldwide
Boven €150,-
Product description

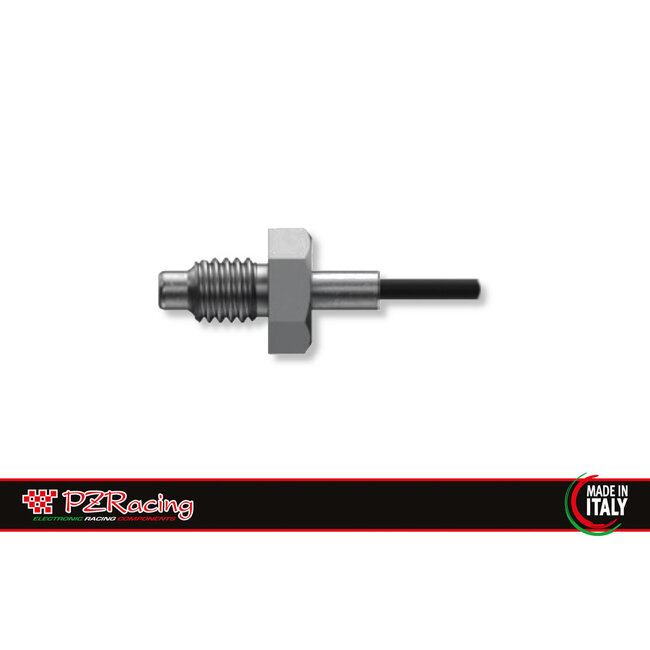

SSWT200 M10x1 temperature sensor
The PZRacing SSWT200 is an M10x1 NTC temperature sensor for temperature recording with a suitable data logger. The sensing element changes resistance with temperature, allowing the connected instrument to process the reading.
A stainless-steel body houses the sensor, with a 75 cm cable and four-pin M8 connector. For installation in a coolant hose, PZRacing lists the separately available 17 mm SSWF200 fitting. Check both the mechanical connection and the instrument’s sensor input before installation.
Features
- Measuring range: -50 to +110 °C
- NTC element; resistance at 25 °C: 10 kΩ
- Thread: M10x1
- 75 cm cable with four-pin M8 connector
- AISI 304 stainless-steel body
- Protection rating: IP67
Use and installation
This is a sensor without its own display. Route the cable away from ignition components and follow the official manual for connection and mounting. The manufacturer specifies a maximum tightening torque of 2 Nm.
