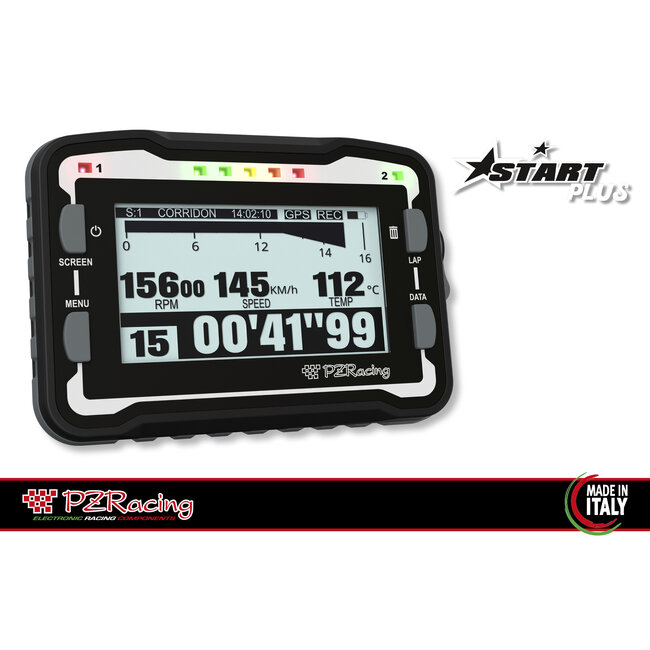

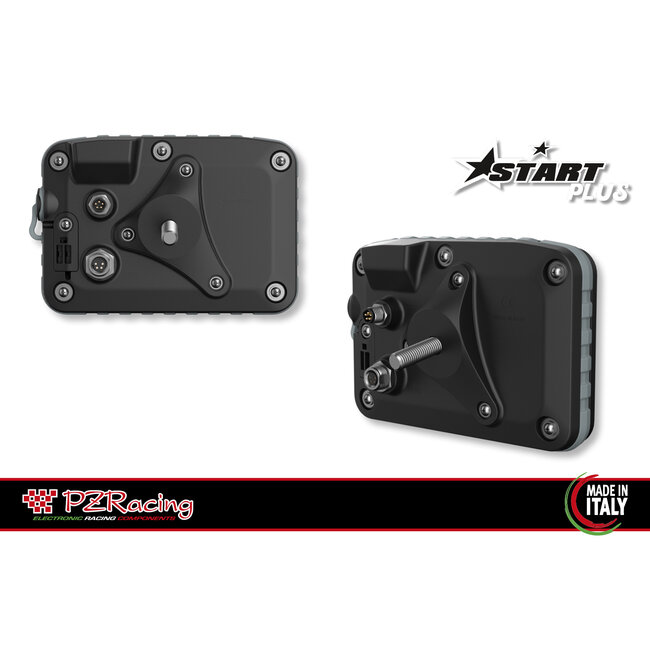

PZRacing Start Plus GPS dashboard with data logging ST400-P

Start Plus GPS dashboard with data logging ST400-P

The PZRacing Start Plus ST400-P is a multifunction dashboard with an integrated 50Hz GPS receiver. It combines lap timing and vehicle data for applications such as karts, scooters, Mini GP and other vehicles requiring additional instrumentation.

Preloaded tracks allow automatic circuit selection. Choose the information needed during the session on the display. The LED bar can show rpm or the gap to the best lap in Chrono Mode. Two alarm LEDs can be configured for temperature, rpm or timing improvement.

Features

• 50Hz GPS and automatic circuit recognition
• 240 × 128-pixel display

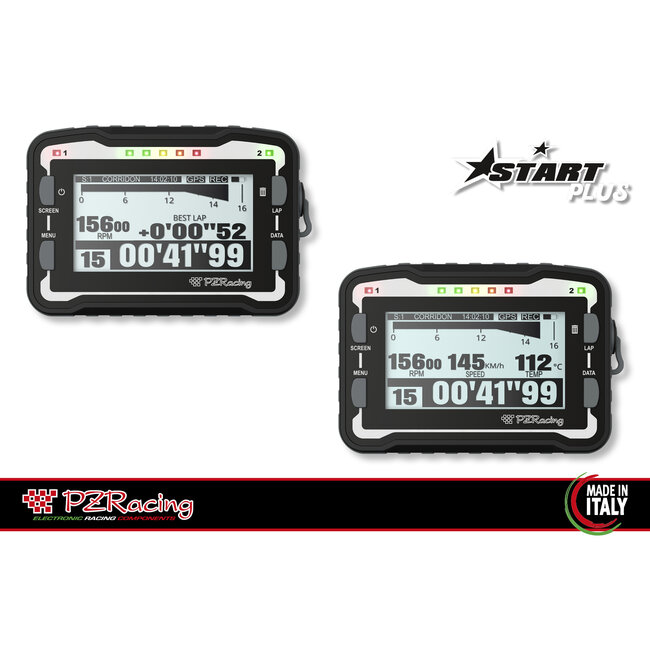

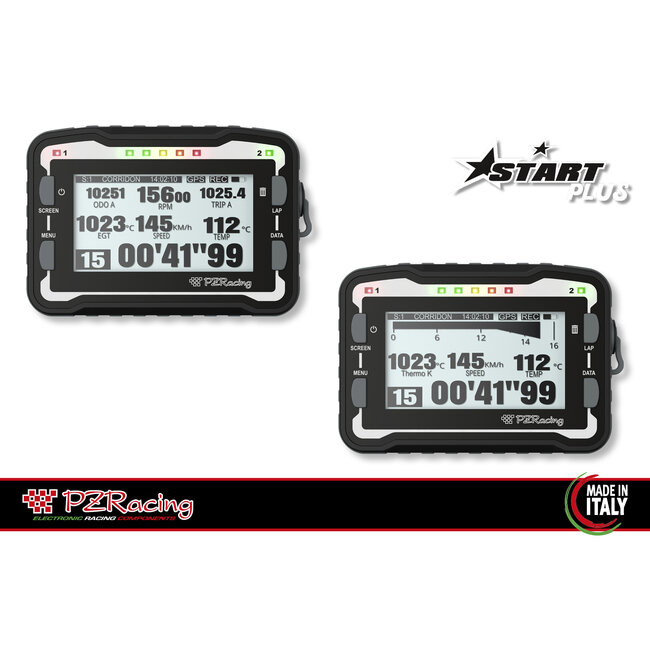

• Three preset and two configurable display layouts
• Up to three splits, ideal lap and predicted lap time
• GPS racing-line recording
• Configurable LED bar and two configurable alarm LEDs
• Up to nine analogue and three digital channels with suitable expansion
• Wi-Fi or USB data download
• Built-in lithium battery; USB-C charging
• Water resistant; 135 × 94 × 33 mm

Use and installation

Available vehicle data depends on the connected sensors and expansions. The separate SSY150 Y-cable is intended for simultaneous NTC and thermocouple temperature measurement. Check which sensors and connections your installation requires before ordering.

Manual PZRacing (ST400-P)
